Carpentry - Stunt Gym


This album shows the work undertaken to construct equipment for a new Stunt Gym in Sydney NSW, run by Tony Lynch http://stuntfitness.com/

The gym will run training for stunt men and women in the film industry alongside parkour and fitness classes for the general public.


The equipment comprises of vaulting boxes and platforms for jumping over/onto/off . Needless to say it all needs to be able withstand serious punishment of daily use. Consequently this is all heavily built.

It consists of 2 x large vault boxes
2 x medium vault boxes
2 x small vault boxes
1 x large platform
1 x set of steps
1 x extra large platform
multiple smaller launch boxes

The boxes are built from ply and timber framed. Glued and screwed, using expanding polyurethane wood glue, a super strong glue that has come from boat building.

Phase 1 - Apparatus

A collection of smaller boxes to be used for launching fromand to aid the vaulting of the larger obstacles


First batch of boxes get a coat of paint

Dry fitting the first vault box.


First vault box almost finished; ready for the top to be fixed in place

Box became known as Big Fred...bomb proof and heavy
First trick on first vault box!

Preparing the framing for the vault box.


This is a large platform for clearing/landing on/climbing over, launching from


Building the steps


This set of steps can used in every direction, with a steep incline, a more gentle gradient, as a launch ramp or as a vault box.



The large and medium vault boxes receive a coat of primer






Marking out for the smaller vault boxes.


 Building the small vaultboxes


 planing the bottom edge to receive a panel on the base







The biggest box of all 4ftx8ft...a vertical wall to climb

Steps completed
The big box completed - note the slots to allow weight to be placed inside for stability.


Phase 2 - The Gym

In the beginning there was a void...an empty warehouse

The Plan is revealed..



 First task a reception desk...



Under construction...


 and a completed reception desk...

Then a partition wall to divide the kitchen from the stunt gym training area


This is a structural wall built to take abuse...



Reinforced wall with a grab handle in case of losing balance


Building a an angled wall...

a shelf going up..

shelf being sanded...



Gangway to go over the kitchen to allow a full circuit of the gym...

gangway in place and the end wall of the kitchen being built...

End wall framing with wall in finished textured black paint


partition wall to divide the kitchen from the gym, reinforced for climbing, tick tacks etc



A huge 3.5 M wall for advanced wall runs and back flips




Gym in progress, scaffold going up and a game of scaff tag!



Testing, testing!




Laying the jigsaw matting floor, cutting in along the wall



Flooring finished and first boxes being moved in

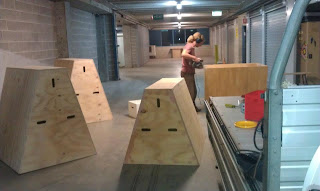

Bring in the apparatus...




Painting the logo...a steady hand and a good eye for detail...


The Stunt Gym is finished!


Heres a few fotos of some action...















and finally... thats me having some fun after all the work!
